Project Description

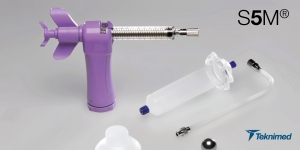

S5M®
Mixing & injection system for Vertebroplasty, Cementoplasty and Kyphoplasty bone cements
The first bone cement delivery gun equipped with a patented automatic pressure-overload safety feature.
ADVANTAGES
- Simple Shake & Mix System
- Secure Mechanism
- Automatic pressure-overload safety feature
- Adjustable injection pressure (up to 120 bars)
- Controlled & measured delivery
- Metallic injection threaded rod
- Free rotative Luer Lock connection
- 10cc injection syringe
S5M® is designed to mix and inject low and medium viscosity bone cements during cementoplasty, vertebroplasty & kyphoplasty procedures.
As the cement viscosity increases over time, the pressure generated inside the syringe is simultaneously increased. The maximum pressure tolerated by the delivery gun can be controlled to perform the injection procedure progressively preventing rapid and massive delivery of cement into the vertebral body.
As soon as the pressure inside the syringe reaches the initial maximum pressure tolerated by the delivery gun, the automatic security mechanism is activated and the cement cannot be injected anymore.
Then the surgeon can increase the maximum pressure by turning “the crank” and the injection can continue with “the handle” until the security system is activated again.
The injection procedure is progressively carried out, adapting the delivery system to the bone cement viscosity.
S5M® can be associated with Teknimed vertebroplasty needles.
References
| Designation |
Reference |
| S5M® | T060407 |
