EUROSCREW® NG & TCP NG

Bioabsorbable Screw for Ligamentoplasty Surgeries

EUROSCREW® NG & TCP NG is a bioabsorbable cannulated screw specially designed for ligamentoplasty surgical techniques like anterior cruciate ligament or ankle lateral ligament reconstructions.

As the range EUROSCREW®, EUROSCREW® NG range is available in 2 materials : 100% PLA and 70% PLA + 30% β-TCP

EUROSCREW® NG offers a complete range of screws and tools that ensure a secure fixation of the transplants.

The interference screws EUROSCREW® NG are available in 9 references, including 6 diameters and 4 lengths suitable for current ligamentoplasty techniques.

EUROSCREW® TCP NG is radiopaque.

The presence of TCP into the PLA matrix keeps a neutral pH of the material by buffer effect during the degradation time and reduces the risk of inflammation. β-TCP is also an osteoconductive material which promotes bone ingrowth.

These screws EUROSCREW® NG & TCP NG  are mechanically stable for respectively 8-10 months and 6 months post-operative; this allows a good rehabilitation. Then they are slowly hydrolyzed by water from surrounding tissues and fully replaced by neo-bone after 24 months.

ADVANTAGES

  • Resorbable
  • High torsion strength
  • Self-tapping
  • Double Thread – Fast screwing
  • Flat Head
  • Controlled degradation

EUROSCREW® NG  screws are recommended for ligament attachment in knee anterior cruciate ligament or ankle lateral ligament reconstructions.

EUROSCREW® NG TCP screws are recommended for ligament attachment in knee anterior cruciate ligament reconstructions.

HIGH TORQUE RESISTANCE

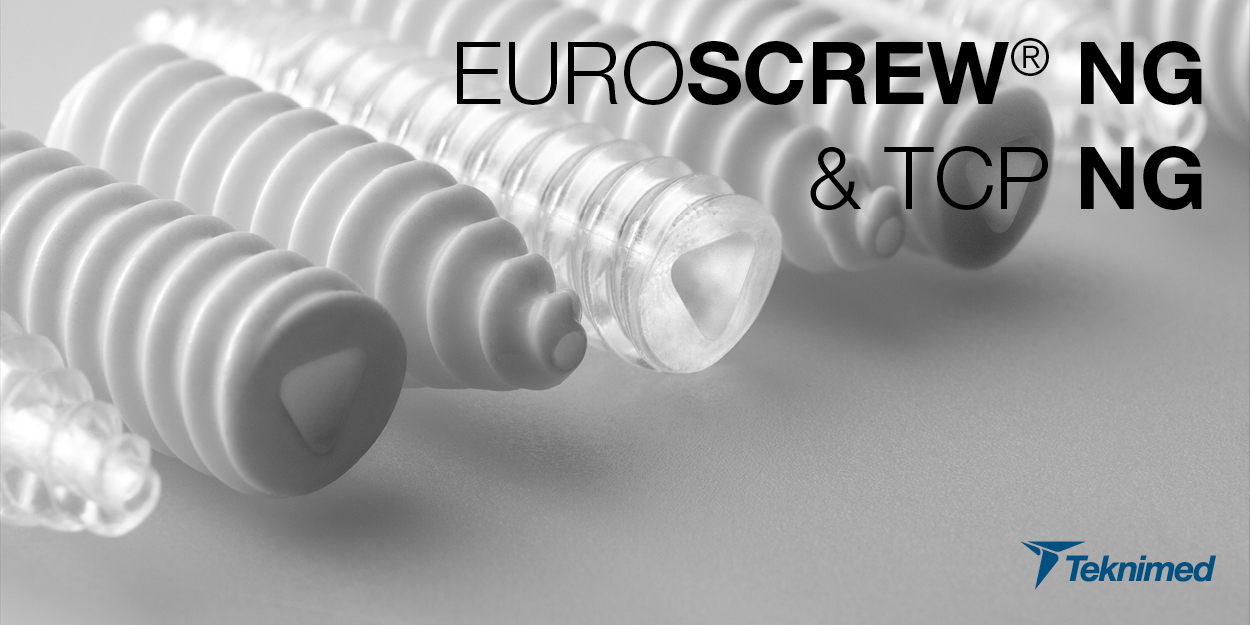

The Range EUROSCREW® NG was designed to reduce the risk of breakage with a better distribution of torque. The screws have a triangular inner cone which ensures perfect contact between the screwdriver and the screw. This contact allows transmission of torque in a compression mode and not in shearing mode. This increases the torque failure resistance of EUROSCREW® NG.

ScheVISNG

SELF-TAPPING
A conical tip and specific threads avoid the need to tap.

SPECIAL INTERNAL CONFIGURATION
Internal design of the tip avoids any contact between the screwdriver and soft tissues.

ScheVISNG2

DOUBLE THREAD – FAST SCREWING

EUROSCREW® NG has a double thread that reduces the number of turns to introduce the screw into the pre-drilled tunnel. As a result, improved insertion preserves graft’s integrity.

FLAT HEAD
A flat head prevents tissue’s friction at the bone surface after implantation. The screw can be inserted as far as needed; this is particularly suitable for tibial tunnel.

EUROSCREW® NG has an accessory :

EUROSCREW® NG INSTRUMENTATION SET to ensure a proper implantation.

EUROSCREW® NG INSTRUMENTATION SET is a complete instrument set for drilling and precise positioning of femoral and tibial tunnels during ACL reconstruction.

EUROSCREW® NG INSTRUMENTATION SET comprises:

  • An open stripper.
  • A calibration plate for the graft.
  • A precise rigid tibial guide for one-handed use.
  •  Two femoral guides with an offset of 1 mm to 3 mm to optimise placement of the femoral tunnel during a gracilis tendon reconstruction.
  •  Two Ø2.4 mm eyed pins to guide drilling and positioning the graft
  • A set of drill bits and cannulated reamers for drilling the tunnels.
  • Two Ø1.2 mm pins to guide placement of the EUROSCREW® NG interference screws.
  • A conformator set to preform the tunnels before passing through the EUROSCREW® NG interference screws.
  •  A screwdriver to insert the EUROSCREW® NG interference screws.

LBA6049-New

References

EUROSCREW® NG interference screws are available in 8 different sizes, 5 diameters and 3 lengths. Screws 24 mm long have a hemispherical head and are ideal for femoral attachment. Screws 30 mm and 35mm long have a flat head and are ideal for tibial attachment.
EUROSCREW® NG is made of 100% polylactide. This PLA follows controlled degradation kinetics
EUROSCREW® NG 100% PLA
SIZE REF
6 mm L 20 mm T720620NG
7 mm L 24 mm T720724NG
8 mm L 24 mm T720824NG
9 mm L 24 mm T720924NG
7 mm L 30 mm T720730NG
8 mm L 30 mm T720830NG
9 mm L 30 mm T720930NG
10 mm L 30 mm T721030NG
11 mm L 35 mm T721135NG



EUROSCREW® NG SET T067200NG
EUROSCREW® NG SCREWDRIVER T067231
EUROSCREW® NG TCP interference screws are available in 8 different sizes, 5 diameters and 3 lengths. Screws 24 mm long have a hemispherical head and are ideal for femoral attachment. Screws 30 mm and 35mm long have a flat head and are ideal for tibial attachment.
EUROSCREW® NG TCP is made of 70% PLA + 30% ß-TCP.



EUROSCREW® NG 70% PLA + 30% ß-TCP
SIZE REF
6 mm L 20 mm T730620NG
7 mm L 24 mm T730724NG
8 mm L 24 mm T730824NG
9 mm L 24 mm T730924NG
7 mm L 30 mm T730730NG
8 mm L 30 mm T730830NG
9 mm L 30 mm T730930NG
10 mm L 30 mm T731030NG
11 mm L 35 mm T731135NG
EUROSCREW® NG SET T067200NG
EUROSCREW® NG SCREWDRIVER T067231

Certifications

Class: III

Bibliography

Chemical synthesis of polylactide and its copolymers for medical applications , d. Bendix, polymer degradation and stability 59 (1998) 129-135.
Resorbable materials of poly(l-lactide), jan w. Leenslag, a. j. Pennings et al.,  biomaterials, 1987, vol. 8.
Fixation of mandibular body osteotomies using biodegradable amorphous self-reinforced (70l:30dl) polylactide or metal lag screws/ an experimental study in sheep, i. Kallela, rm Tulamo et al., journal of cranio-maxillofacial surgery 1999 27 124-133.
Biological performance of a new b-tcp/pla composite material for applications in spine surgery: in vitro and in vivo studies, s. Aunoble, d. Clement et al., journal of biomedical materials research part a doi 10.1002.
