Project Description
NovScrew NG & TCP NG
Bioabsorbable interference screw For Ligamentoplasty Surgery

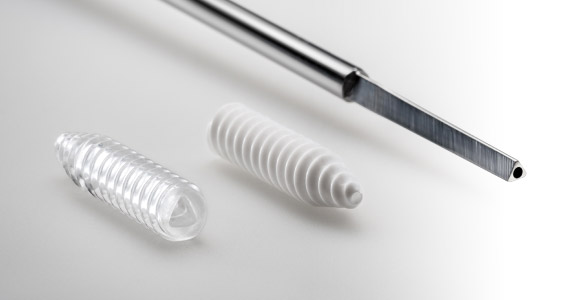

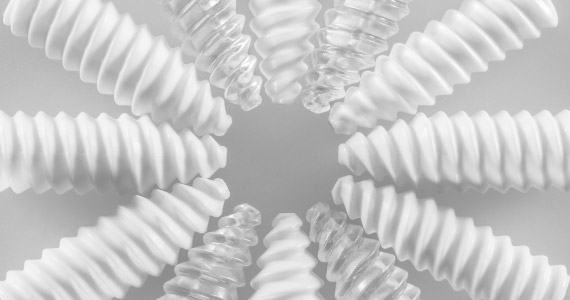

NovScrew NG are bioabsorbable cannulated screws specially designed for ligamentoplasty surgical procedures.
NovScrew NG offer a complete range of screws to be used with a dedicated ACL instrumentation to ensure a secure fixation of the graft. The screws are suitable for current ligamentoplasty techniques (bone-tendon-bone or soft tissues grafts in bone tunnels).
ADVANTAGES
- High torque resistance
- Self-tapping
- Special internal configuration
- Double thread – Fast screwing
- Full range
NovScrew NG screws are indicated in knee anterior cruciate ligament or ankle lateral ligament reconstructions in ligamentoplasty procedures.
NovScrew TCP NG screws are indicated in knee anterior cruciate ligament reconstructions in ligamentoplasty procedures.
2 compositions available:
NovScrew NG
100% PLA [poly(70/30; L/DL)lactide]
NovScrew TCP NG
Polyal®: 70% PLA [poly(70/30; L/DL)lactide] 30% ß-TCP [tricalcium phosphate]
The bioabsorption kinetic of NovScrew is tailored to ensure a secure attachment of the graft during the bone healing phase. Complete absorption of the screw is observed within an average of 4 years*.
*Internal report “SO161019”, 2019
| Designation | References |
| Ratchet Handle | T067228 |
| Screwdriver Shaft EUROSCREW NG | T067234 |
| Screwdriver EUROSCREW NG | T067231 |
References
| SIZE | SKU |
| Ø 6 mm L 20 mm | T720620NG |
| Ø 7 mm L 24 mm | T720724NG |
| Ø 8 mm L 24 mm | T720824NG |
| Ø 9 mm L 24 mm | T720924NG |
| Ø 7 mm L 30 mm | T720730NG |
| Ø 8 mm L 30 mm | T720830NG |
| Ø 9 mm L 30 mm | T720930NG |
| Ø 10 mm L 30 mm | T721030NG |
| Ø 11 mm L 35 mm | T721135NG |
| SIZE | SKU |
| Ø 6 mm L 20 mm | T730620NG |
| Ø 7 mm L 24 mm | T730724NG |
| Ø 8 mm L 24 mm | T730824NG |
| Ø 9 mm L 24 mm | T730924NG |
| Ø 7 mm L 30 mm | T730730NG |
| Ø 8 mm L 30 mm | T730830NG |
| Ø 9 mm L 30 mm | T730930NG |
| Ø 10 mm L 30 mm | T731030NG |
| Ø 11 mm L 35 mm | T731135NG |
